A full-inverter air-to-water heat pump with 22 kW rated heating capacity, up to 80°C outlet water, single- or three-phase supply options and a dual-fan cabinet.
Single phase · maximum current220–240 V · 1Ph · 50 Hz18 AThree phase · maximum current380–415 V · 3N · 50 Hz16 A
Rated heating input
5.88 kW
Rated cooling capacity
17.2 kW
Rated cooling input
7.31 kW
Maximum power input
7.5 / 10.5 kW
Single / three phase
Refrigerant and charge
R290 · 1400 g
Compressor
Panasonic Full Inverter
Heat exchanger
Danfoss plate heat exchanger
Integrated hydronic components
Inverter pump · expansion tank
Cabinet
Dual fan
Net weight
131 kg
System integration
Integrated hydronic package for higher capacity
SK22 combines a built-in inverter circulation pump and expansion tank with a Panasonic compressor and Danfoss plate heat exchanger. The final heating, cooling or domestic-hot-water system is coordinated around project load, operating temperatures and hydronic distribution.
HYDRONIC SYSTEM · APPLICATION

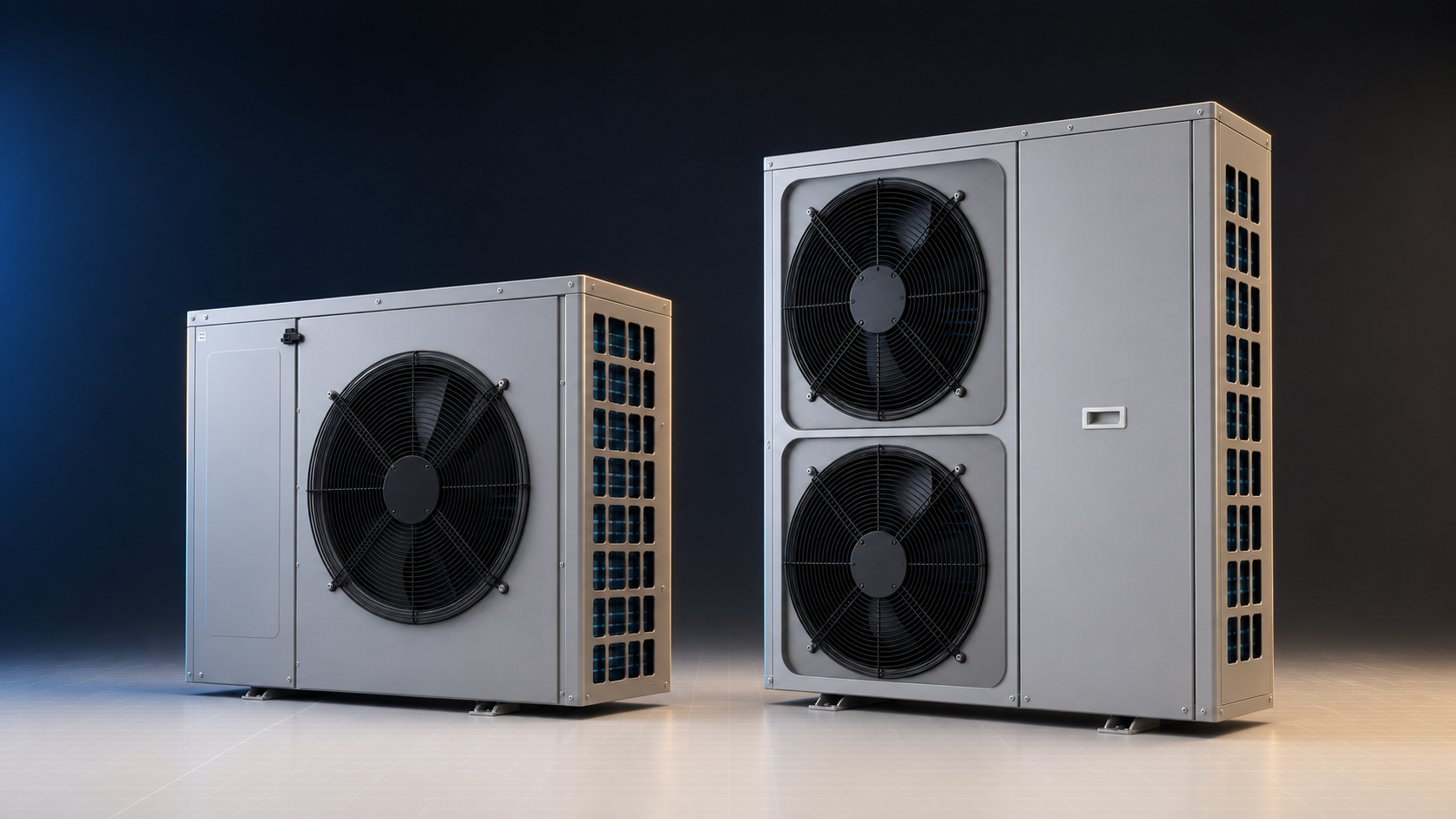

R290 SK16 / SK22 · MODEL LINEUP
Site planning

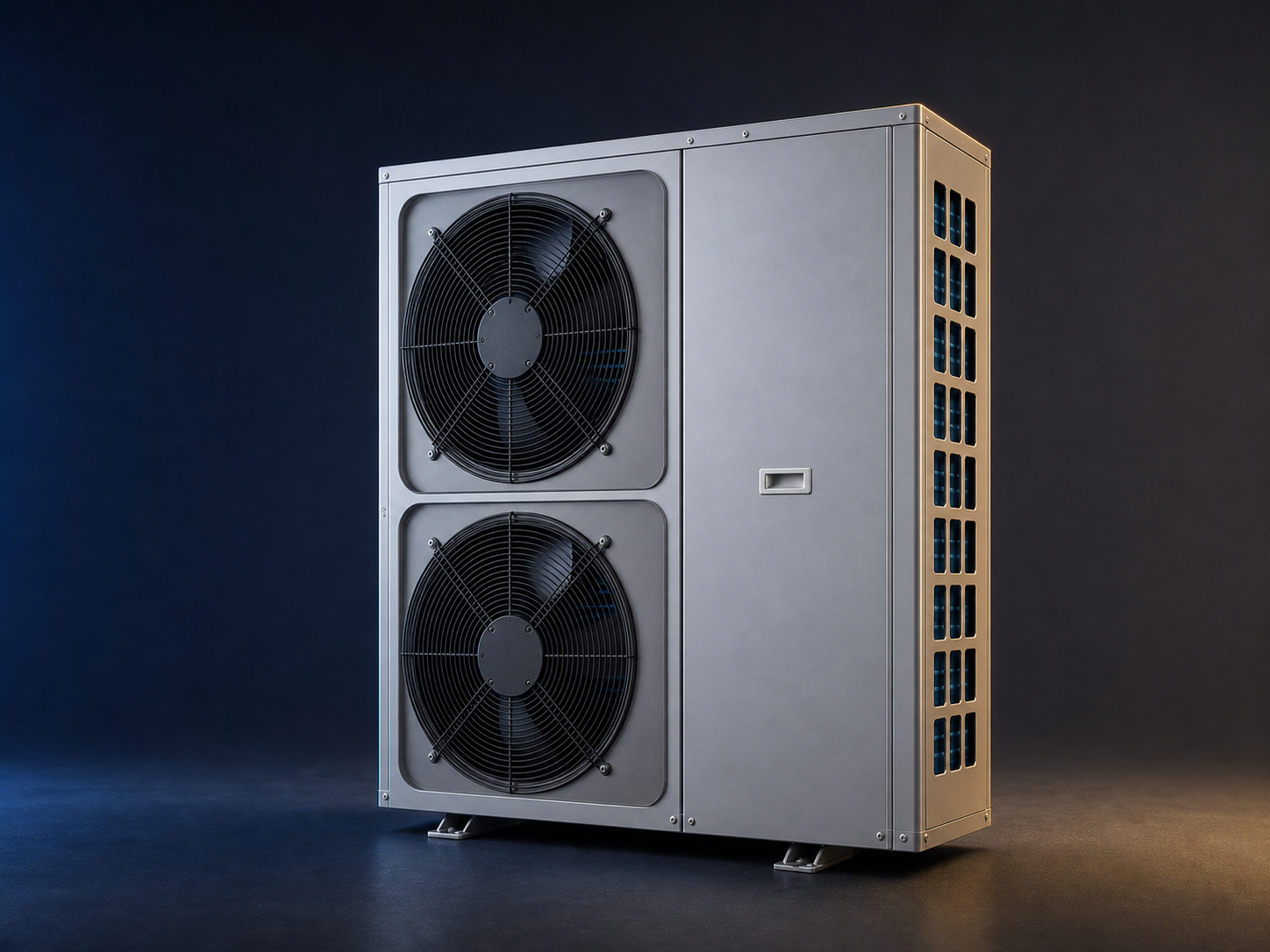

Dual-fan cabinet with planned service space
1277 × 434 × 1262 mm
The SK22 cabinet measures 1277 mm wide, 434 mm deep and 1262 mm high, with a net weight of 131 kg. The location must preserve airflow and the service clearances defined for the site.
Control and support
Clear operating control and scheduling
The LCD interface provides operating, water-temperature and time settings, with Wi-Fi connection through the Smart Life app. Final functions depend on the fitted unit and controller configuration.
LCD control interface
Operating, water-temperature and time settings
Wi-Fi through Smart Life
