Hydronic underfloor heating

Low-temperature comfort begins below the finished floor.

Hydronic underfloor heating circulates warm water through pipe loops embedded within the floor construction. The large active surface can distribute heat evenly when the building load, insulation, layout, flow and controls are designed as one system.

GOLD · SYSTEM GUIDE

A water-based heating system, not only a pipe layout.

The floor build-up becomes the heat emitter. Pipe spacing, circuit lengths, water temperature, floor finish and room-by-room demand influence the final layout and operating response.

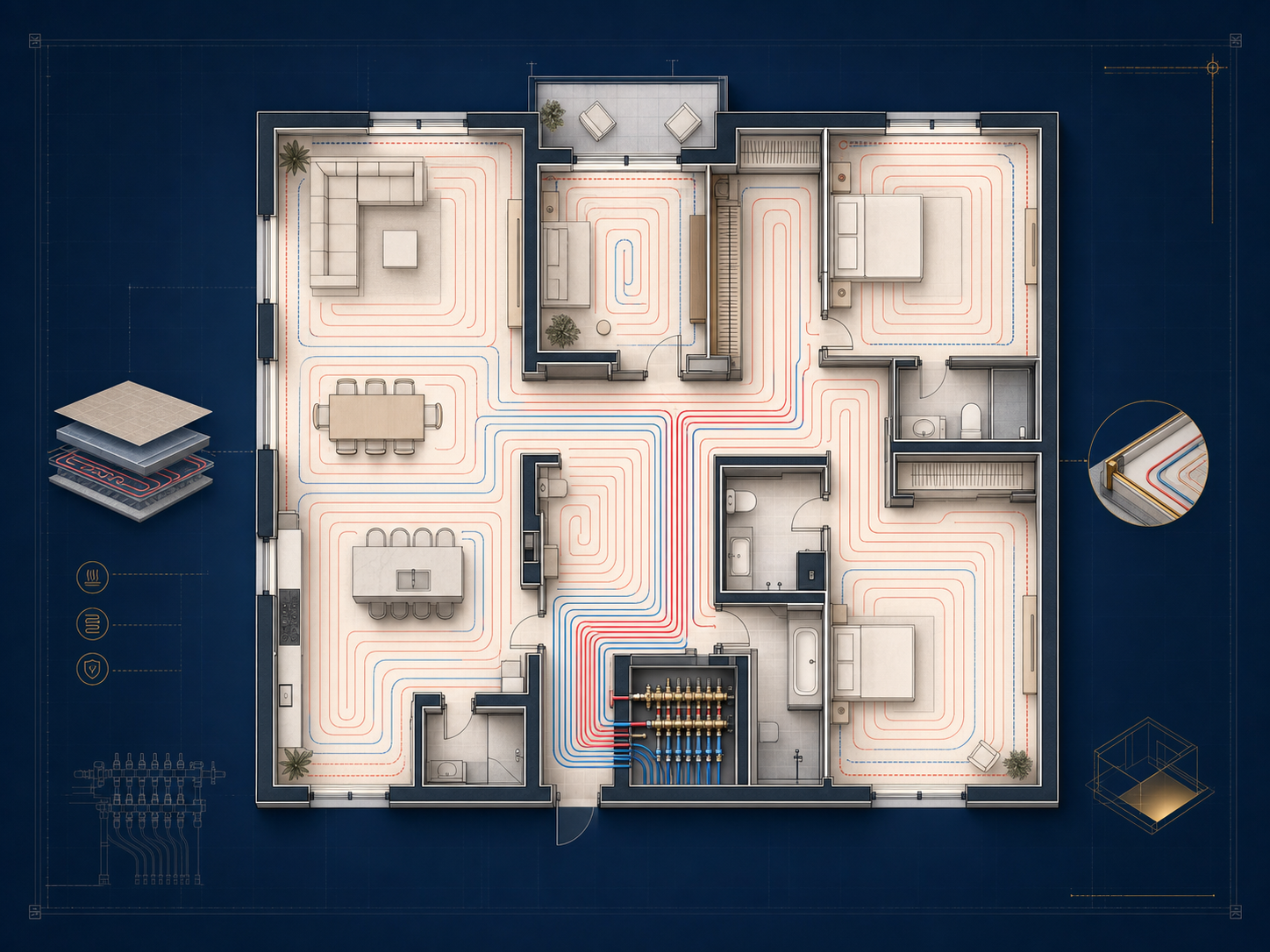

Illustrative hydronic underfloor-heating loop plan connected to a central manifold

From plan to installation

Every circuit begins with a considered decision before the floor is covered.

Whether the underfloor network already exists or is included in GOLD Group's scope, review begins with the building plans, calculated load, floor build-up and control zones so the distribution network can be coordinated with the heat source.

  1. 01

    Study the inputs

    Review room loads, insulation, floor construction, manifold position and required control zones.

  2. 02

    Plan the circuits

    Coordinate pipe spacing, loop length, routing and edge zones for each space.

  3. 03

    Install and verify

    Coordinate connections, pressure-test the circuits and document their routes before completing the floor build-up.

How the system is coordinated

01

Heat source

A correctly selected heat pump can supply the low-temperature water commonly used by hydronic floor circuits.

02

Distribution

Manifolds divide the system into balanced loops with suitable flow rates and circuit lengths.

03

Room control

Zoning, thermostats and actuators coordinate room demand without losing sight of minimum flow and heat-source operation.

Hydronic underfloor heating

Integration with a heat pump

Underfloor heating can be a strong match for an air-to-water heat pump because it generally works with lower supply-water temperatures than many traditional emitters. The heat pump, buffer strategy, circulation and controls still need to be selected around the actual project.

01

Steady water temperature

Weather compensation and suitable controls can adjust supply temperature as outdoor conditions change.

02

Coordinated circulation

Pump selection, manifold pressure loss and zone operation must maintain the intended flow through active circuits.

Hydronic underfloor heating

Design inputs that shape the floor system

The final design should follow calculated room loads and the actual floor construction rather than a single standard spacing rule.

01

Building heat load

Room-by-room demand defines the heat output required from each floor area.

02

Insulation

Building-envelope and below-pipe insulation influence losses, response and required output.

03

Pipe spacing and layout

Spacing, loop pattern, circuit length and edge zones respond to room demand and geometry.

04

Floor construction

Screed depth, floor finish and material resistance affect heat transfer and response time.

05

Supply-water temperature

The design temperature must suit the calculated output, floor limits and selected heat source.

06

Zoning and controls

Manifolds, actuators, thermostats, sensors and circulation logic coordinate individual areas.
